Inline Strainers

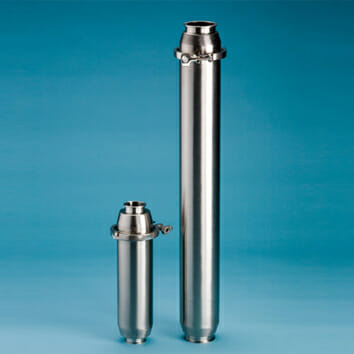

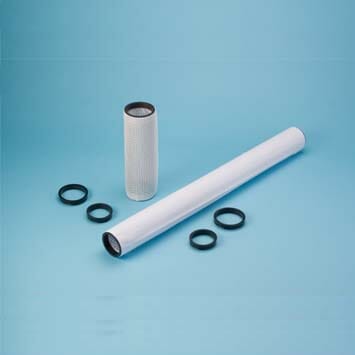

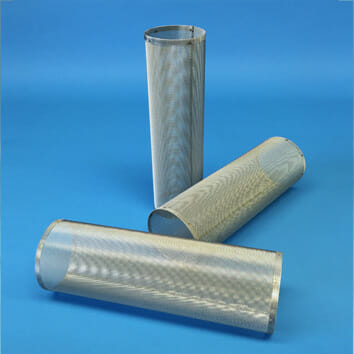

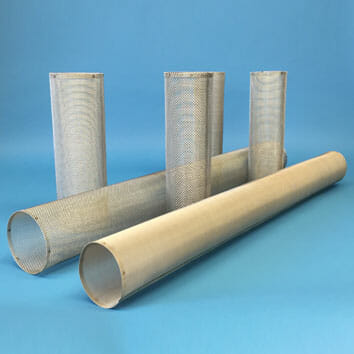

SaniClean Inline Sanitary Strainers provide efficient, cost effective filtration. Designed for maximum application flexibility, the SaniClean strainer housings accept a wide range of strainer elements - Wire Mesh OverScreens, SKS OverScreens, Wedge Wire, and disposable Filter Socks which are available in both SHORT and LONG models.

SaniClean features quality crafted strainers - all sanitary construction; crevice free and polished. They are cost effective and manufactured to the highest quality standards. They are designed to be dimensionally interchangeable with other industry standard inline sanitary strainers.


Line Size Effective Filter Area (FT²) A
(inches)
B
(inches)

1.0 0.65 15.75 4.0
S 1.5 0.65 15.75 4.0
H 2.0 0.65 15.75 4.0
O 2.5 0.75 15.75 4.5
R 3.0 0.75 15.75 4.5
T 4.0 0.75 15.75 4.5






1.0 1.95 35.38 4.0
L 1.5 1.95 35.38 4.0
O 2.0 1.95 35.38 4.0
N 2.5 2.25 35.38 4.5
G 3.0 2.25 35.38 4.5

4.0 2.25 35.38 4.5



SaniClean Strainers - Inline
1"
1-1/2"
2"
2-1/2"
3"
4"

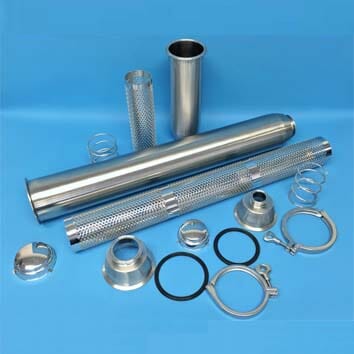

Complete Strainer Assembly consists of:
Filter Body, Filter Cap, Spring, Distributor Cap, Clamp,
Gasket (Buna N), Perforated Core (1/4 dia. holes)
SHORT (15 3/4") 5009000 5009010 5009020 5009030 5009040 5009100
LONG (38 3/8") 5009050 5009060 5009070 5009080 5009090 5009105
Description
Item #
Item #
Item #
Item #
Item #
Item #
Outlet Assembly / Clamped Connection
5000700
5000800
5000900
5001000
5002000
5003000
Filter Body (SHORT) / Clamped Connection
5000710
5000810
5000910
5001010
5002010
5003010
Filter Body (LONG) / Clamped Connection
5000720
5000820
5000920
5001020
5002020
5003020
Distributor Cap
5000730
5000730
5000730
5001030
5001030
5001030
Spring
5000740
5000740
5000740
5001040
5001040
5001040
Clamp
5000750
5000750
5000750
5000850
5000850
5000850
Gasket (Buna N)
5000760
5000760
5000760
5000765
5000765
5000765
Gasket (Silicon) 5000770 5000770 5000770 5000775 5000775 5000775
Gasket (SFY)
5000770
5000770
5000770
5000775
5000775
5000775
Gasket (EPDM)
5000780
5000780
5000780
5000785
5000785
5000785

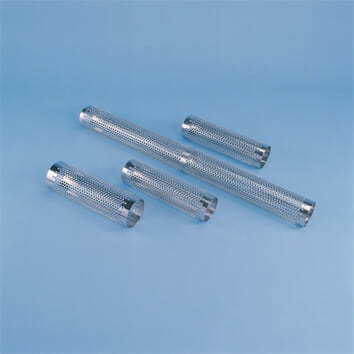

Perforated Support Core 3.0" dia. SHORT 14 ga. 1/8" / 0.125" dia. holes (40% Open Area) 5005010 5005010 5005010


Perforated Support Core 3.0" dia. SHORT 14 ga. 1/4" / 0.250" dia. holes (58% Open Area)
5005030
5005030
5005030



Perforated Support Core 3.0" dia. LONG 14 ga. 1/8" / 0.125" dia. holes (40% Open Area)
5005050
5005050
5005050



Perforated Support Core 3.0" dia. LONG 14 ga. 1/4" / 0.250" dia. holes (58% Open Area)
5005070
5005070
5005070










Perforated Support Core 3.5" dia. SHORT 12 ga. 1/8" / 0.125" dia. holes (40% Open Area)


5006090
5006090
5006090
Perforated Support Core 3.5" dia. SHORT 12 ga. 1/4" / 0.250" dia. holes (58% Open Area)


5006100
5006100
5006100
Perforated Support Core 3.5" dia. LONG 12 ga. 1/8" / 0.125" dia. holes (40% Open Area)


5006120
5006120
5006120
Perforated Support Core 3.5" dia. LONG 12 ga. 1/4" / 0.250" dia. holes (58% Open Area)


5006130
5006130
5006130
